Fluid Level Inspection
- Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
- Remove the belly pan. Refer to BELLY PAN, REMOVAL AND INSTALLATION
.

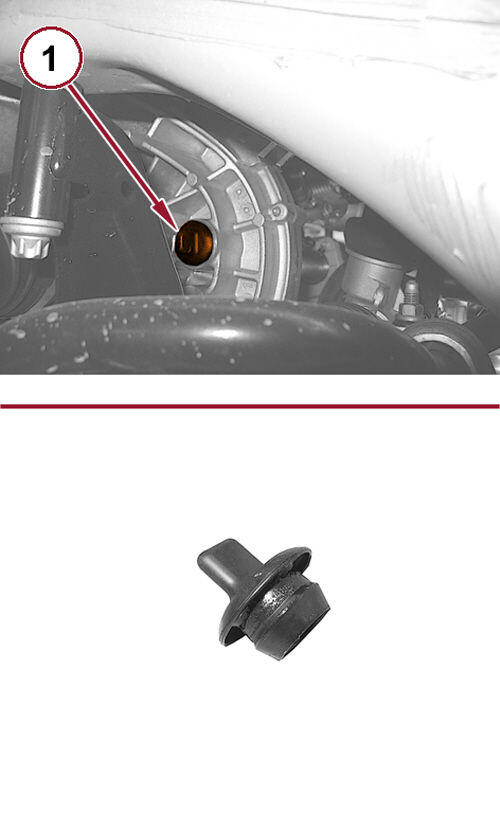

- Remove the transmission fill plug (1) and check that the oil level is just below the bottom edge of the fill hole.
- If oil level is low, add the recommended oil. Refer to CAPACITIES AND RECOMMENDED FLUIDS, SPECIFICATIONS .
- Clean the filler cap and install it in the transmission.
- Install the belly pan. Refer to BELLY PAN, REMOVAL AND INSTALLATION .
- Remove the support and lower the vehicle.
