Removal And Installation

REMOVAL

1. Disconnect and isolate the negative battery cable(s). Refer to STANDARD PROCEDURE .
2. Remove the remote radio switch. Refer to SWITCH, REMOTE RADIO, REMOVAL AND INSTALLATION .

   .

3. Remove the steering wheel. Refer to WHEEL, STEERING, REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

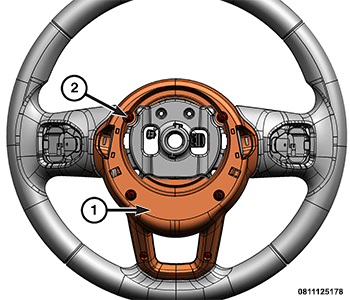

4. Remove the screws (2) securing the steering wheel back cover (1) to the steering wheel, then remove the steering wheel back cover from the steering wheel.
5. Pull the steering wheel bezel away from the steering wheel and disconnect the cruise control switch and Electronic Vehicle Information Center (EVIC) switch wire harness connectors, then remove the bezel with switches.

   Courtesy of CHRYSLER GROUP, LLC

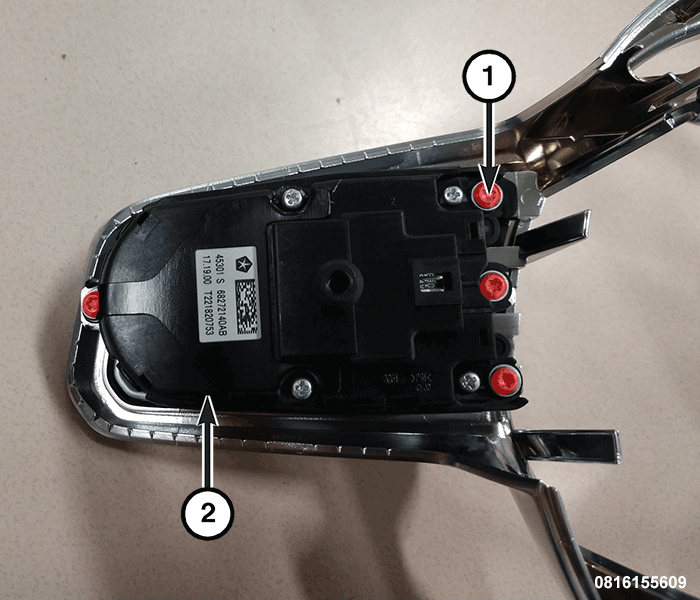

6. Remove the screws (1) securing the cruise control switch to the bezel and remove the cruise control switch (2) from the bezel.

INSTALLATION

1. Position the cruise control switch to the steering wheel bezel.
2. Install the screws securing the cruise control switch to the bezel and tighten securely.
3. Position the bezel to the steering wheel and connect the cruise control and EVIC switch wire harness connectors.
4. Install the screws securing the steering wheel back cover to steering wheel and tighten securely.
5. Install the steering wheel. Refer to WHEEL, STEERING, REMOVAL AND INSTALLATION .
6. Install the remote radio switch. Refer to SWITCH, REMOTE RADIO, REMOVAL AND INSTALLATION .

   .

7. Connect the negative battery cable(s). Refer to STANDARD PROCEDURE .
