Engine Block: FLEXPLATE: Installation

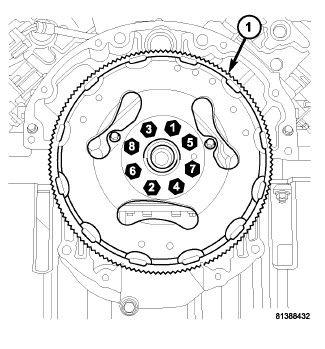

GC0095614Courtesy of CHRYSLER GROUP, LLC
  1. Position the flexplate (1) onto the crankshaft and install the bolts finger tight.
  2. Using the sequence shown in illustration, tighten the flexplate retaining bolts to the proper torque specification. Refer to TECHNICAL SPECIFICATIONS .
    CAUTION:

    Do not use an impact socket or a thick walled socket when removing or installing the flexplate retaining bolts, damage to the crankshaft, internal engine or the transmission may occur.

  3. Install the transmission. Refer to INSTALLATION .
