Switch, Memory: Installation
- Install the memory seat switch (2) into the driver door trim panel (4). Push the switch firmly into the trim panel until the retaining tabs (1 and 3) are fully engaged.

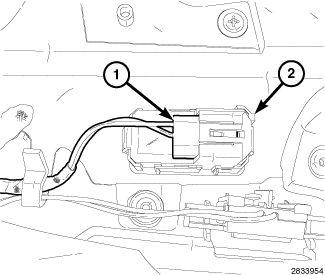

- Connect the wire harness connector (1) to the memory seat switch (2).
- Install the driver door trim panel. Refer to PANEL, DOOR TRIM, INSTALLATION .
- Reconnect the negative battery cable.
- Using a scan tool, perform the Power Seat System Verification test. Refer to POWER SEAT SYSTEM VERIFICATION TEST .
- Verify proper memory seat system operation.
