Switch, Lumbar Control: Installation

NOTE:

Left hand drive model shown in illustration. Right hand drive model similar.

Courtesy of CHRYSLER GROUP, LLC

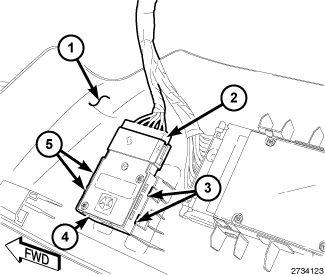

Connect the electrical connector (2) to the power lumbar support switch (4). Make sure the connector is fully engaged to the switch.
Position the power lumbar support switch to the seat cushion side trim panel (1) and engage the four tabs (3 and 5) that secure the switch to the trim panel. Make sure the retaining tabs are fully engaged.

Courtesy of CHRYSLER GROUP, LLC

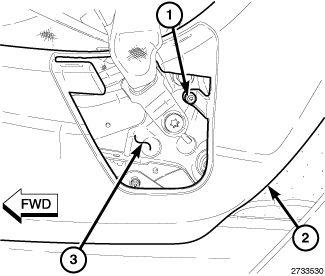

Position the seat cushion side trim panel (2) to the seat.
Slide the seat cushion side trim panel rearward and engage the trim panel to the three mounting brackets located on the outboard seat frame (3).
Install the screw (1) that secures the seat cushion side trim panel to the seat frame. Tighten the screw securely.

Courtesy of CHRYSLER GROUP, LLC

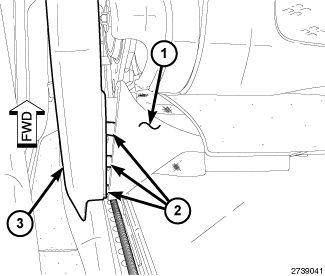

Carefully engage the tabs (2) that secure the seat cushion side trim panel (3) to the rear of the seat (1). Make sure the retaining tabs are fully engaged.

Courtesy of CHRYSLER GROUP, LLC

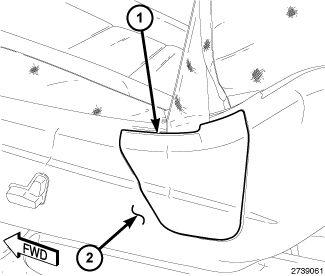

Install the seat belt anchor trim panel (1) onto the outboard seat cushion side trim panel (2). Make sure the trim panels are fully engaged to each other.
Connect the negative battery cable.
Verify proper power seat operation.
