Isolator, Front CROSSMEMBER, Frame: Removal

Courtesy of CHRYSLER GROUP, LLC

Remove the engine cradle crossmember (2). Refer to CROSSMEMBER, CRADLE, ENGINE AND SUSPENSION, REMOVAL .
Remove the spacer (1).

Courtesy of CHRYSLER GROUP, LLC

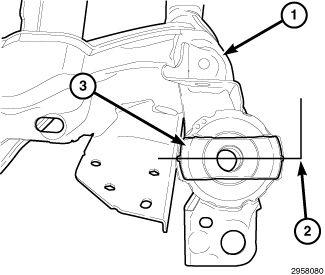

As an installation reference, carefully mark location of isolator (3) requiring removal on crossmember (1) (around isolator can flange) using a marker or crayon. Do not use a scratch awl to mark location.

Courtesy of CHRYSLER GROUP, LLC

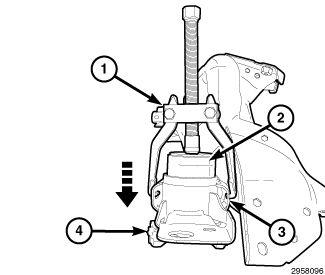

1 - OTC puller 1182 or equivalent

2 - Remover/Installer, Bushing 6602-2

3 - Front Engine Cradle Crossmember

4 - Isolator

NOTE:

Prior to using special tools, lubricate OTC puller 1182 or equivalent (1) threads to provide ease of use and promote tool longevity.

Assemble tools over isolator as shown in illustration.
Using OTC puller 1182 or equivalent and Remover/Installer, Bushing (special tool #6602-2, Remover/Installer, Bushing) remover, remove the isolator (4).
