CROSSMEMBER, Transmission: Installation

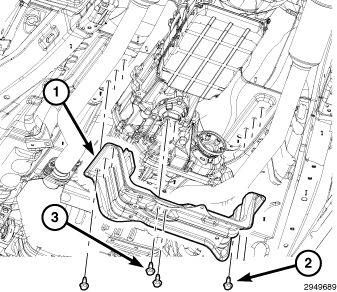

GC0146313Courtesy of CHRYSLER GROUP, LLC
  1. Install the crossmember (1) and install the six crossmember bolts (2).
  2. Tighten the six crossmember bolts (2) to 61 N.m (45 ft. lbs.).
  3. Remove the lifting device.
  4. Install the transmission mount bolts (3) and tighten to 61 N.m (45 ft. lbs.).
  5. Install the crossmember reinforcement brackets and tighten the bolts to 55 N.m (41 ft. lbs.).
  6. Install the skid plate. Refer to PLATE, SKID, TRANSMISSION, INSTALLATION .
