Removal And Installation: Removal
- Disconnect and isolate the negative battery cable.
- Remove the engine cover. Refer to the appropriate Service Information
.
 Courtesy of CHRYSLER GROUP, LLC
|

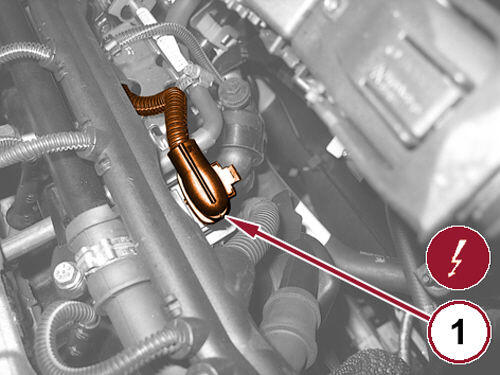

- Disconnect the turbo boost pressure sensor wire harness connector (1).
 Courtesy of CHRYSLER GROUP, LLC
|

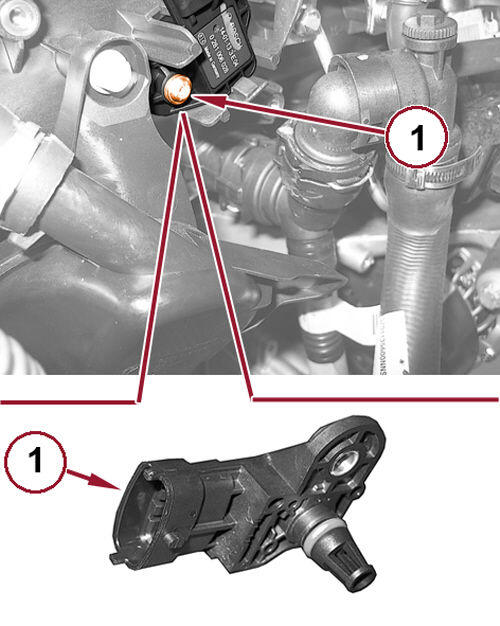

- Remove the screw and the boost pressure sensor (1).
