Disassembly And Assembly: Assembly

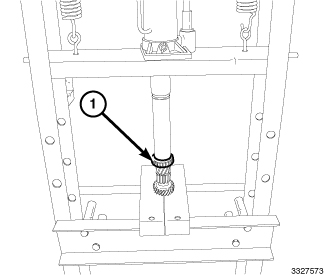

GC0147776Courtesy of CHRYSLER GROUP, LLC
  1. Install the rear bearing (1) using (special tool #W-262, Installer, Bearing)
    GC0140347Courtesy of CHRYSLER GROUP, LLC

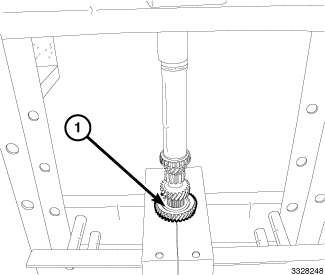

    GC0147777Courtesy of CHRYSLER GROUP, LLC
  2. Install the fifth gear (1) using (special tool #W-262, Installer, Bearing).
    GC0140347Courtesy of CHRYSLER GROUP, LLC

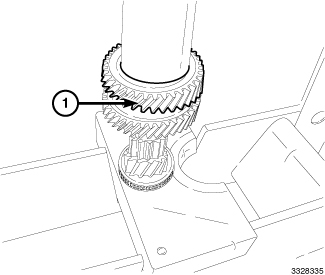

    GC0147778Courtesy of CHRYSLER GROUP, LLC
  3. Install the third gear (1) using (special tool #W-262, Installer, Bearing).
    GC0140347Courtesy of CHRYSLER GROUP, LLC

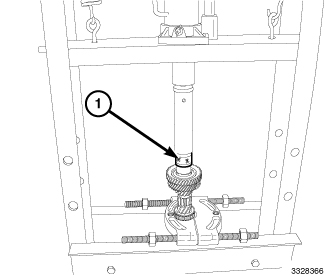

    GC0147779Courtesy of CHRYSLER GROUP, LLC
  4. Install the collar (1) using (special tool #W-262, Installer, Bearing).
    GC0140347Courtesy of CHRYSLER GROUP, LLC

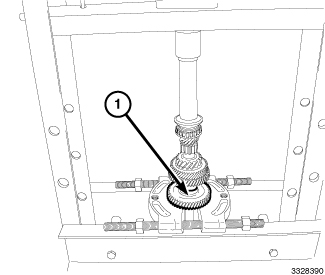

    GC0147780Courtesy of CHRYSLER GROUP, LLC
  5. Install the forth-sixth gear (1) using (special tool #C-4193A, Installer, Seal).
    GC0142883Courtesy of CHRYSLER GROUP, LLC

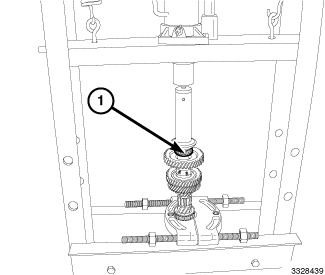

    GC0147781Courtesy of CHRYSLER GROUP, LLC
  6. Install the front bearing (1) using Seal Installer (special tool #C-4193A, Installer, Seal).
    GC0142883Courtesy of CHRYSLER GROUP, LLC

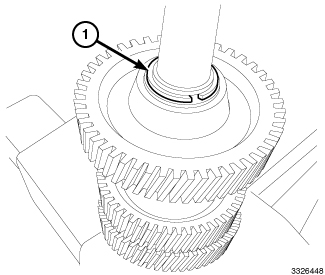

    GC0147772Courtesy of CHRYSLER GROUP, LLC
  7. Install the snap ring (1).
  8. Install a NEW  rear bearing retention bolt and tighten to the proper specification. Refer to TECHNICAL SPECIFICATIONS .
