Disassembly And Assembly: Assembly

GC0156097Courtesy of CHRYSLER GROUP, LLC
  1. Position the ring gear.
  2. Install NEW  ring gear bolts (1) and tighten them in a crisscross pattern to the proper specification. Refer to TECHNICAL SPECIFICATIONS .

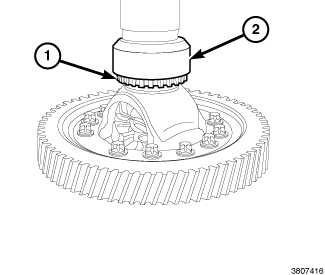

  3. Install a NEW  ring gear side differential bearing (1) using a suitable press and (special tool #C-4340, Installer, Bearing) (2).
  4. Install a NEW  pinion gear side differential bearing using a suitable press and (special tool #C-4340, Installer, Bearing) (2).
