Control Valve, Oil Intake: Installation
WARNING: This page is about a different variant/trim than selected.
- Lubricate the Variable Valve Timing Solenoid (VVTS) rubber O-ring seal with clean engine oil.
- Install the VVTS and rotate into position.

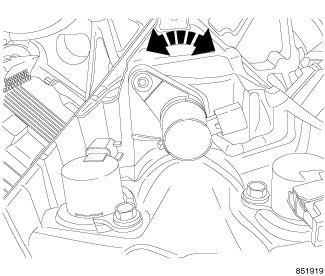

- Install the VVTS (3) retaining bolt (2) and tighten to the proper specifications. Refer to TORQUE SPECIFICATIONS .
- Connect VVTS electrical connector (1).
- Install intake manifold. Refer to INTAKE MANIFOLD INSTALLATION .
