Removal And Installation: Removal

WARNING: This page is about a different car, the 2019 Jeep Compass. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect and isolate the negative battery cable.

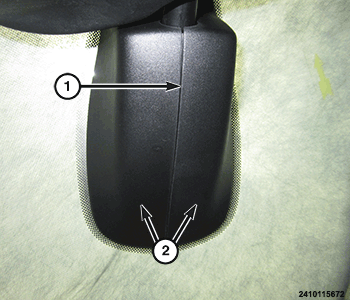

    GC0179239Courtesy of CHRYSLER GROUP, LLC
  2. Using trim stick C-4755 or equivalent, carefully separate the two mirror covers (2), by splitting the seam (1).

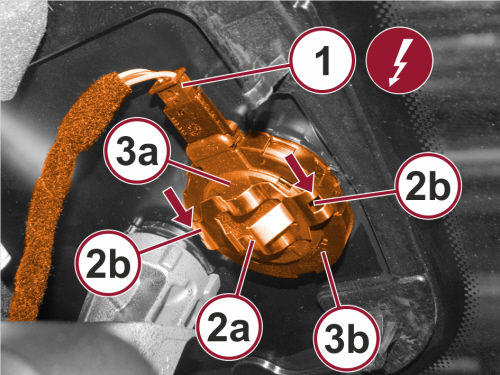

    GC0172588Courtesy of CHRYSLER GROUP, LLC
  3. Disconnect the light rain sensor wiring harness connector (1).
  4. Remove the retaining clip (2a) by releasing the side hooks, inserting a screwdriver in the openings (2b).
  5. Remove the light rain sensor (3a) from the housing (3b) on the windscreen.
