Down Stream 2.0L Diesel 170CV Auto: Installation

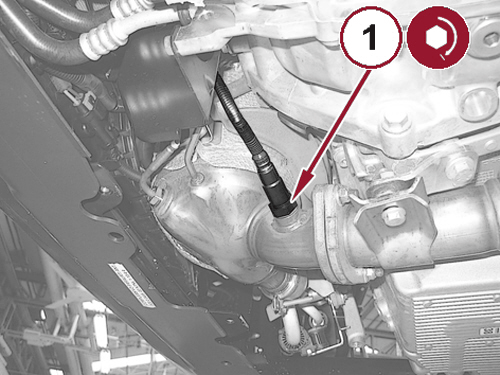

GC0173145Courtesy of CHRYSLER GROUP, LLC
  1. Install the lower oxygen sensor (1) and tighten it to the proper and engage the wiring with the retaining clips. .
  2. Connect the lower oxygen sensor wire harness connector.
  3. Connect the upper oxygen sensor wire harness connector.
  4. Install the belly pan. Refer to BELLY PAN, REMOVAL AND INSTALLATION .
  5. Install the battery tray. Refer to TRAY, BATTERY, REMOVAL AND INSTALLATION .
  6. Install the engine cover.
