Sensor, Intelligent Battery (IBS): Removal

WARNING:

Do not remove the captive nut, doing so will cause the stud to break.

Remove the components to access the battery. Refer to BATTERY, REMOVAL .

Courtesy of CHRYSLER GROUP, LLC
Loosen the M6 captive nut (1).
NOTE:
Do not remove the M6 captive nut, doing so will cause the M6 stud on IBS pole clamp to break.

Courtesy of CHRYSLER GROUP, LLC
Disconnect the two-pin (Power & LIN) Intelligent Battery Sensor (IBS) electrical connector (1).

Courtesy of CHRYSLER GROUP, LLC
Remove the ground terminal M8 hex nut (1).

Courtesy of CHRYSLER GROUP, LLC

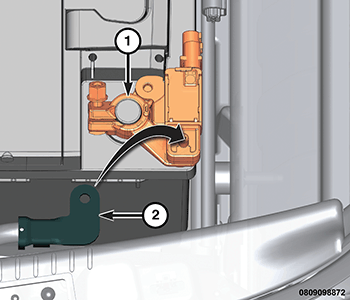

Remove the negative battery cable eyelet (2) from the battery terminal (1).
NOTE:
Never pry the IBS to remove it from the pole clamp. This will damage the IBS and will need to be replaced.
Using the appropriate battery terminal puller, remove the battery cable terminal from the negative battery post.
