Section 267 (Navigation/Telecommunication (Service Information)): Microphone: Installation

WARNING: This page is about a different car, the 2017 RAM ProMaster 3500, 2017 RAM ProMaster 2500, and 2017 RAM ProMaster 1500. However, it is still accessible from the selected car via links, so may be relevant.

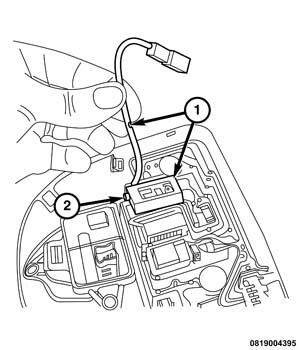

GC0159070Courtesy of CHRYSLER GROUP, LLC
  1. Position the microphone (1) to the back of the roof lamp housing.
  2. Firmly press the microphone into the housing until the retainer (2) is fully engaged.
  3. Install the roof lamp unit into the headliner. Refer to LAMP, DOME, INSTALLATION .
  4. Connect the negative battery cable.
