3.0L Diesel
WARNING: This page is about a different car, the 2017 RAM ProMaster 3500, 2017 RAM ProMaster 2500, and 2017 RAM ProMaster 1500. However, it is still accessible from the selected car via links, so may be relevant.
- Clean the sealing area in the cylinder block and heating element.

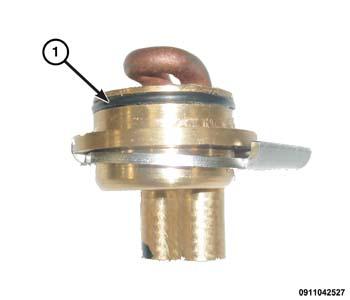

- Install a NEW
O-ring seal (1) onto engine block heater.

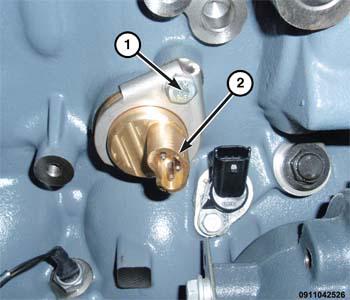

- Install the engine block heater (2) and tighten the bolt (1) to 25 N.m (18 ft. lbs.).
- Connect the power cord to the engine block heater.
- Install the generator. Refer to GENERATOR, INSTALLATION .
- Fill cooling system with recommended coolant. Refer to STANDARD PROCEDURE .
- Connect the negative battery cable.
- Start and warm the engine.
- Check block heater for leaks.
