Tire Pressure Sensor: Removal

  1. To remove the sensor from the valve stem, press down on the spring clip using a small screwdriver while pulling. See Fig 1.
    NOTE: Replace the valve stem assembly with each tire change or when the tire is removed from the wheel. Install a NEW valve stem and valve stem core if they are removed from the wheel or valve stem.
  2. Remove the valve stem from the wheel.

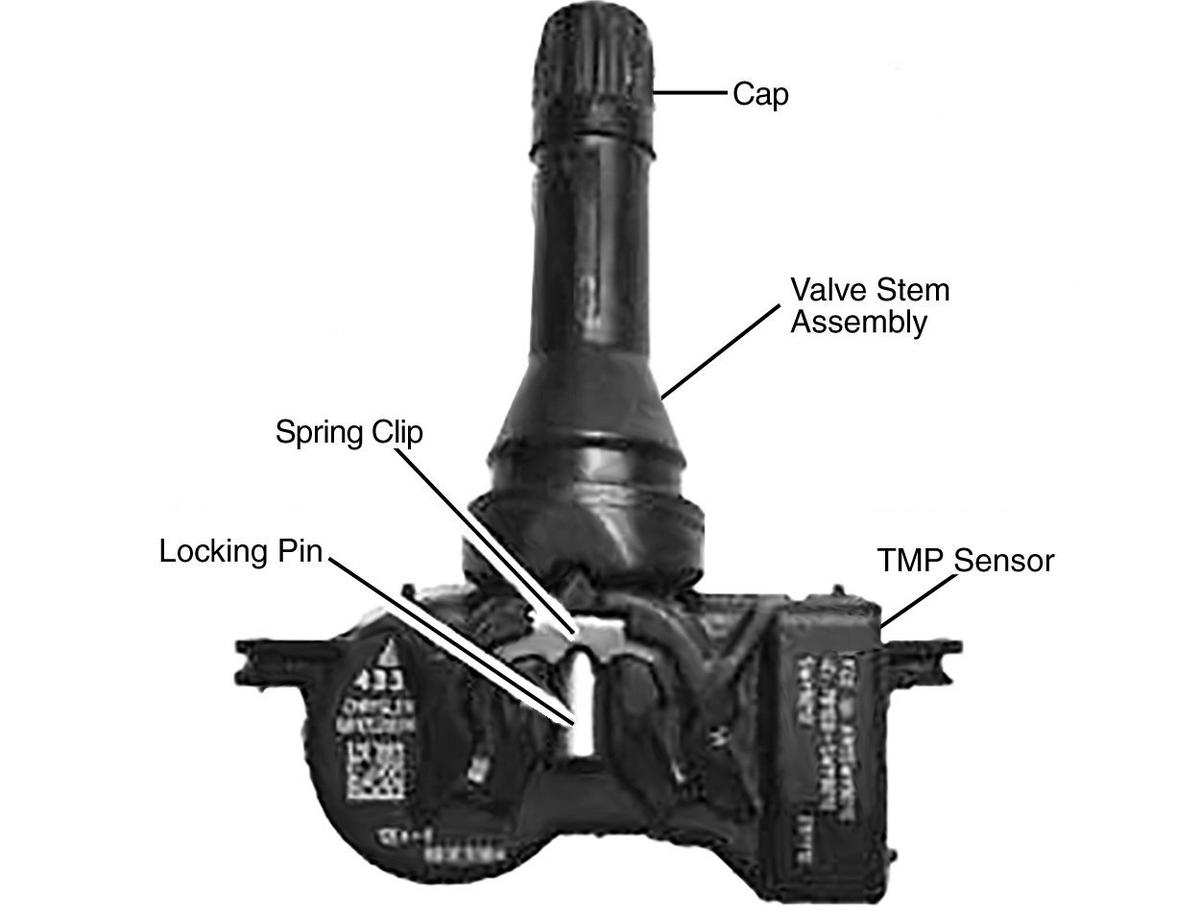

Fig 1: Identifying TPMS Sensor Components
G00525216Courtesy of CHRYSLER CORP.
