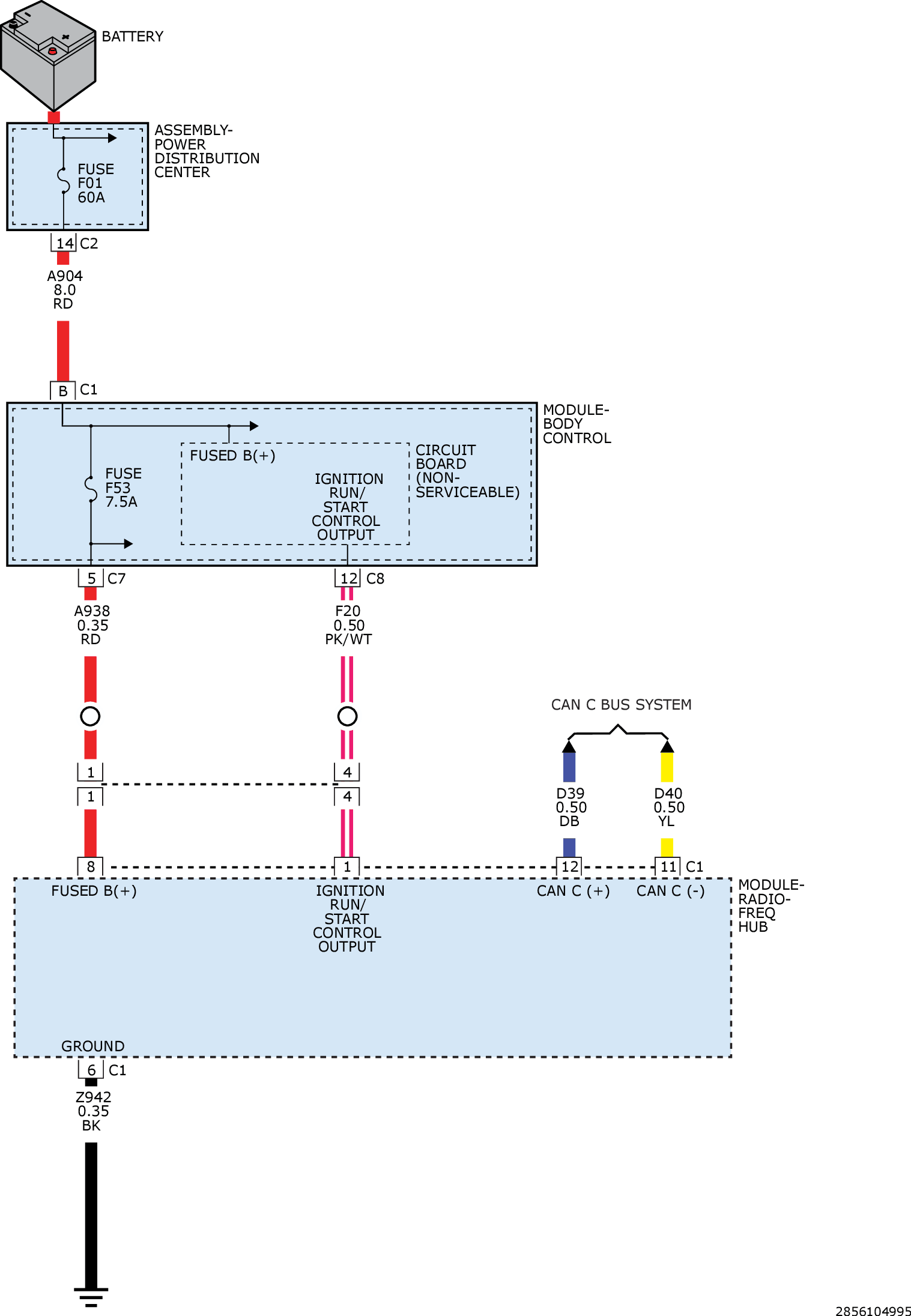

B2103-14-Ignition Run/Start 1 Control-Circuit Short To Ground Or Open: Notes

GC0180134

Courtesy of CHRYSLER GROUP, LLC
