Removal And Installation: Installation

WARNING: This page is about a different variant/trim than selected.

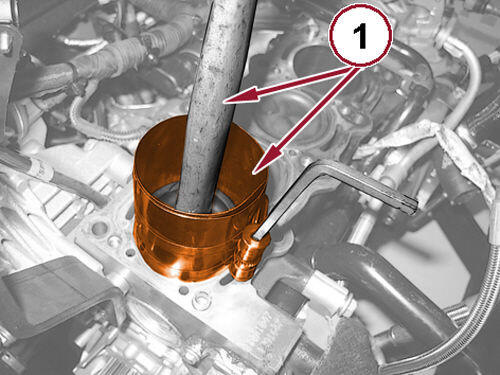

Fig 1: Piston Ring Compression Tool & Driver

Courtesy of CHRYSLER GROUP, LLC

Install the connecting rod and piston complete with upper bearing shell, using a suitable piston ring compression tool and driver (1).

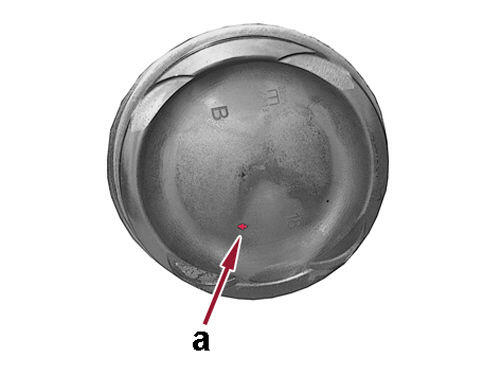

Fig 2: Ensuring Arrow On Crown Of Piston Is Facing To Front Of Engine
Courtesy of CHRYSLER GROUP, LLC
Make sure the arrow (a) on the crown of the piston is facing to the front of the engine.

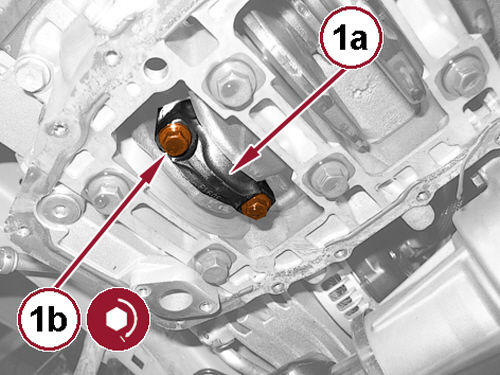

Fig 3: Connecting Rod Cap & Bolt
Courtesy of CHRYSLER GROUP, LLC
Install the connecting rod cap (1a) complete with bearing shell and tighten the bolts (1b) to the proper specification. Refer to TORQUE SPECIFICATIONS .

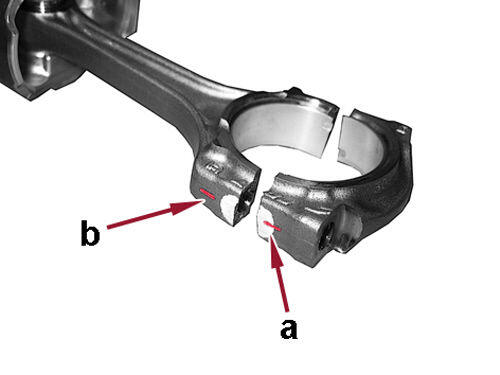

Fig 4: Ensuring Rod Caps Are Installed With Number Stamped On Cap Facing Number Stamped On Rod
Courtesy of CHRYSLER GROUP, LLC

NOTE:
The rod caps must be installed such to the number stamped on them (a) is facing the same side of that stamped on the rod (b).

NOTE:
Each connecting rod must be coupled with the respective cap respecting the numerical references stamped on them; connecting rods and rod caps are not interchangeable.
Install engine oil pick-up tube complete with new gasket and tighten the bolts to the proper specification. Refer to TORQUE SPECIFICATIONS .
Install the cylinder head. Refer to CYLINDER HEAD, REMOVAL AND INSTALLATION .
Remove the motor support frame.
