B143F-Microphone 2 Circuit High: Notes
WARNING: This page is about a different car, the 2012 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

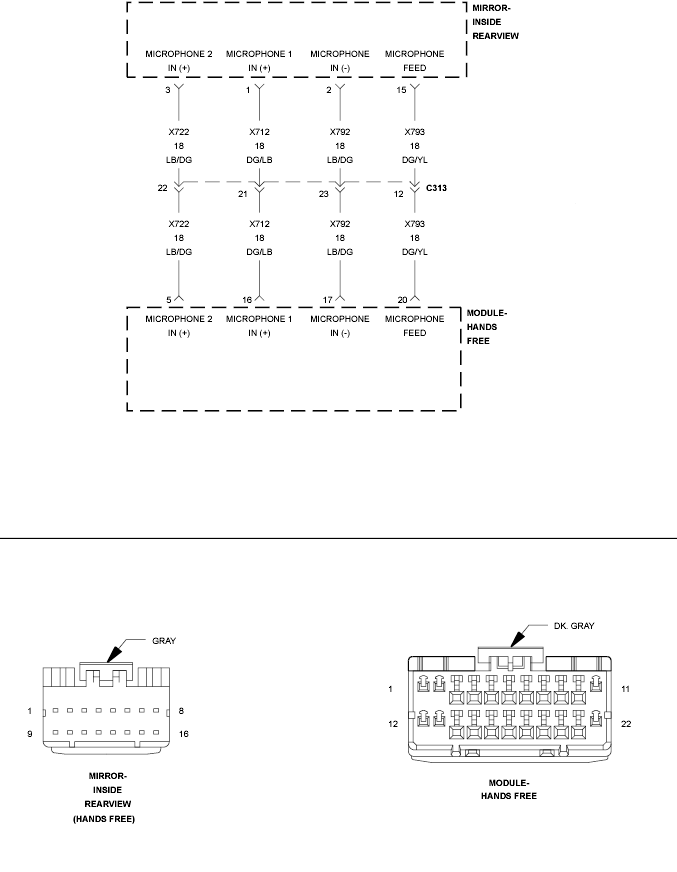

Fig 1: Microphone Control Wiring Diagram
Courtesy of CHRYSLER GROUP, LLC
For a complete wiring diagram, Refer to appropriate SYSTEM WIRING DIAGRAMS article
.
