Sensor, Air Temperature, Inlet: Installation: Installation

Fig 1: Sensor Orientation
GC0084338Courtesy of CHRYSLER GROUP, LLC
  1. Install inlet air temperature sensor into the clean air duct.

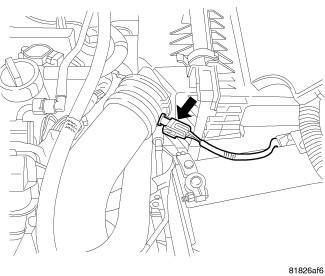

    Fig 2: Inlet Air Temperature Sensor
    GC0084337Courtesy of CHRYSLER GROUP, LLC
  2. Connect electrical connector to sensor.
  3. Connect the negative battery cable.
