Switch, Seat: Installation: Installation

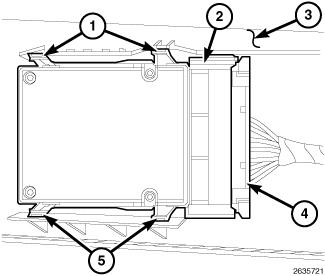

Fig 1: Identifying Tabs, Seat Switch, Outboard Seat Cushion Side Shield & Wiring Harness Connector
GC0137815Courtesy of CHRYSLER GROUP, LLC
  1. Install the power seat switch (2) onto the seat cushion side shield (3). Make sure the retaining tabs (1 and 5) are fully engaged.
  2. Connect the wiring harness connector (4) to the power seat switch.
  3. Install the seat cushion side shield.
  4. Reconnect the negative battery cable.
  5. Verify power seat operation.
