Ambient Temperature Sensor: Installation: Installation

WARNING: This page is about a different car, the 2013 Jeep Patriot and 2013 Jeep Compass. However, it is still accessible from the selected car via links, so may be relevant.

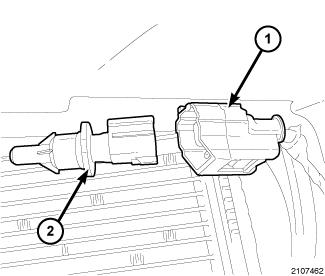

Fig 1: Identifying Ambient Temperature Sensor & Wire Harness Connector
GC0098555Courtesy of CHRYSLER GROUP, LLC
  1. Connect the wire harness connector (1) to the ambient temperature sensor (2).
  2. Position the ambient temperature sensor in the vehicle.
  3. Install the push pin type retainer that secures the ambient temperature sensor to the lower left side of the front bumper.
  4. Connect the battery negative cable.
