Sensor, Manifold Air Pressure (Map): Installation: Installation

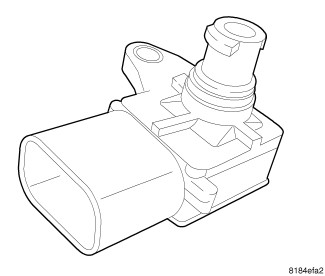

Fig 1: MAP Sensor
GC0082500Courtesy of CHRYSLER GROUP, LLC
  1. Install manifold absolute pressure (MAP) sensor to intake manifold.

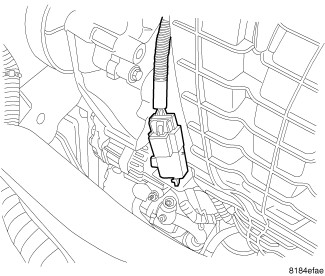

    Fig 2: MAP Sensor Location
    GC0082499Courtesy of CHRYSLER GROUP, LLC
  2. Tighten screw to 8 N.m (71 in. lbs.).
  3. Connect electrical connector to sensor.
  4. Connect the negative battery cable.
