Inlet Temperature Sensor
Courtesy of CHRYSLER GROUP, LLC

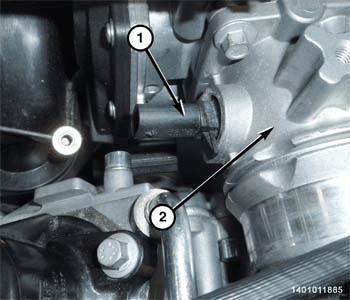

The air inlet temperature sensor (1) is located on the EGR air flow control valve. The air inlet temperature sensor (1) measures the temperature of the air after the Charge Air Cooler (CAC).
