Engine Block: FLEXPLATE: Removal: Removal

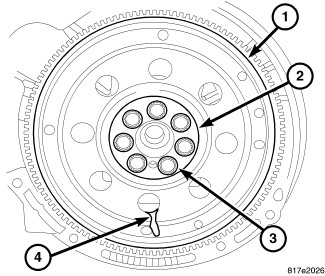

Fig 1: Flex Plate
GC0098637Courtesy of CHRYSLER GROUP, LLC
  1. Remove transmission. Refer to T355 REMOVAL . Refer to CVT REMOVAL .
  2. Remove flex plate bolts (3) and discard.
  3. Remove washer (2).
  4. Remove flex plate (1).
