Backlite - Removal

REMOVAL

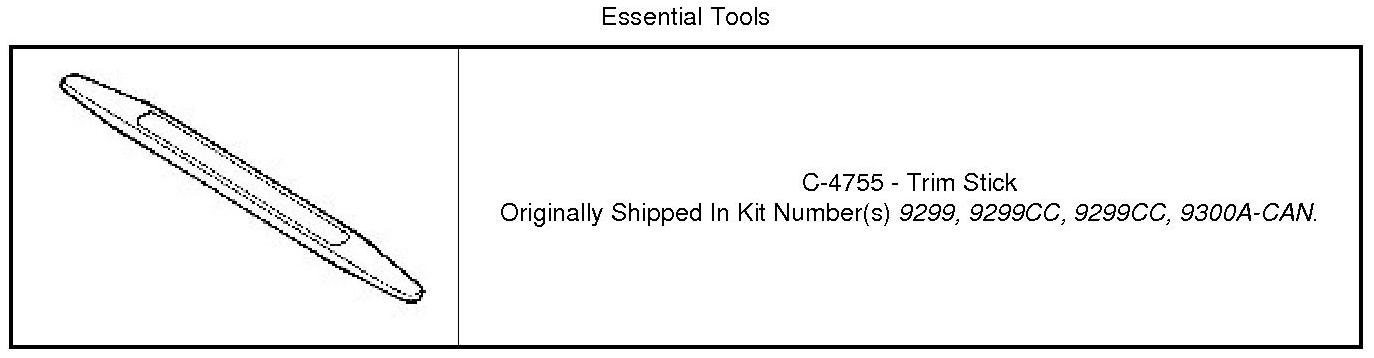

Special Tools:










1. Disconnect the rear wiper motor electrical connectors (3).
2. Disconnect the washer hose (4).
3. Disconnect the rear window heater grid connector (2).





4. Remove the glass supports (2), Gas Prop - Removal.





5. Using a trim stick or equivalent, open the hinge trim covers (2).
6. Remove the bolts (3) and remove the backlite (1).
