Starter - Removal

3.6L

1. Disconnect and isolate the negative battery cable.
2. Raise and support the vehicle Maintenance.

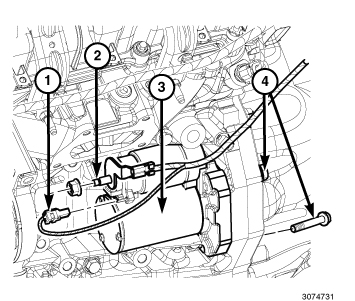

3. Disconnect the starter solenoid electrical connector (1) from the starter solenoid terminal.
4. Remove the battery cable nut and battery cable from the solenoid stud (2).
5. Remove the starter mounting bolts (4).
6. Remove the starter assembly (3) from the transmission.
