Switch, Clutch Starter Interlock: Installation: Installation

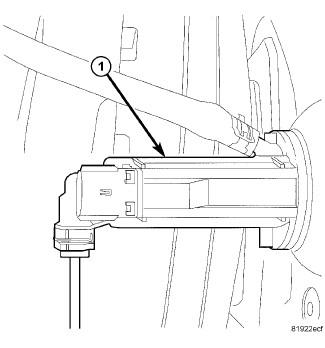

Fig 1: Identifying Pedal Position Switch
GC0085589Courtesy of CHRYSLER GROUP, LLC
  1. Snap pedal position switch (1) on clutch master cylinder.

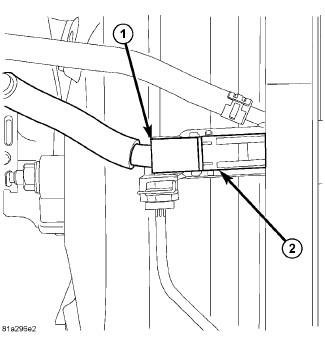

    Fig 2: Clutch Switch Harness
    GC0100750Courtesy of CHRYSLER GROUP, LLC
  2. Connect harness (1) to clutch pedal position switch (2).
