Knob, Gearshift: Installation: Installation

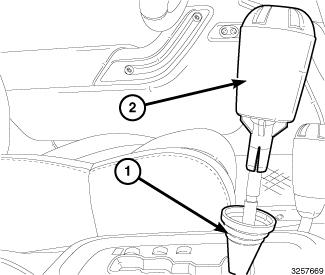

Fig 1: Knob
GC0148268Courtesy of CHRYSLER GROUP, LLC
  1. Install the shift knob (2) onto the shift lever and firmly push the shift knob down.
    NOTE:

    There is a small notch in the retaining ring. Align notch with the seam in the knob.

  2. Pull the retaining ring (1) up and click into place.
