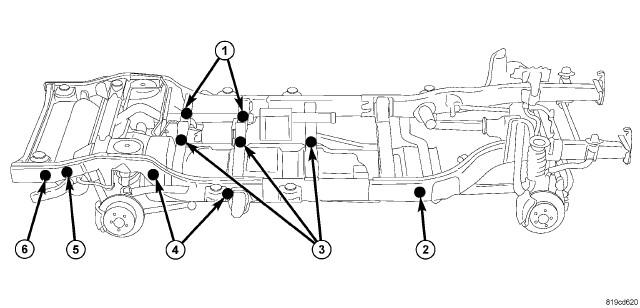

| 1 - THREE M10 FUEL VAPOR CANISTER CROSSMEMBER NUTS |
- ACCESS HOLES LOCATED ON TOP OF CROSSMEMBERS |
| 2 - TWO M12 TRANSMISSION SKID PLATE CROSSMEMBER NUTS |
- ACCESS HOLES LOCATED ON INSIDE OF FRAME RAILS |
| 3 - M12 FUEL TANK CROSSMEMBER NUTS (SWB has 2, LWB has 3) |
- ACCESS HOLES LOCATED ON TOP OF CROSSMEMBERS |
| 4 - M12 FUEL TANK FRAME RAIL NUTS |
- ACCESS HOLES LOCATED ON OUTSIDE OF FRAME RAIL |
| 5 - TWO M10 REAR STABILIZER NUTS |
- ACCESS HOLES LOCATED ON THE OUTSIDE OF FRAME RAILS |
| 6 - FOUR M10 STANDARD REAR BUMPER BRACKET NUTS |
- ACCESS THROUGH REAR OF FRAME RAILS |
