Vehicle Preparation

Position the vehicle on a level work surface. Using screw or bottle jacks, adjust the vehicle PLP heights to the specified dimension above a level work surface. Vertical dimensions can be taken from the work surface to the locations indicated were applicable.

INDEX

DESCRIPTION	FIGURE
PLAN VIEW - TWO DOOR JK ONLY	Refer to Fig 1.
SIDE VIEW - TWO DOOR JK ONLY	Refer to Fig 2.
PLAN VIEW - FOUR DOOR JK ONLY	Refer to Fig 3.
SIDE VIEW - FOUR DOOR JK ONLY	Refer to Fig 4.

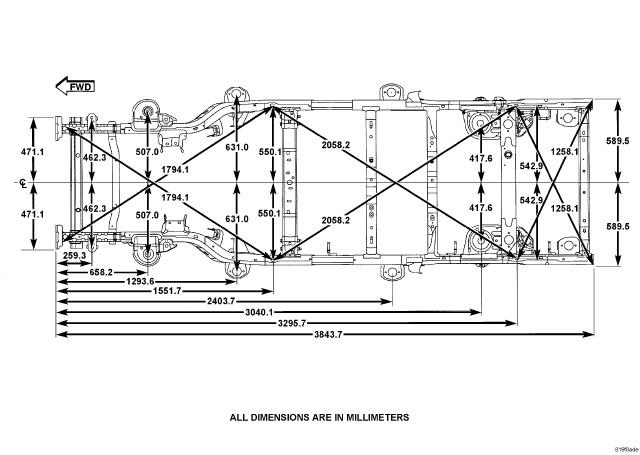

Fig 1: Plan View - Two Door

Courtesy of CHRYSLER GROUP, LLC

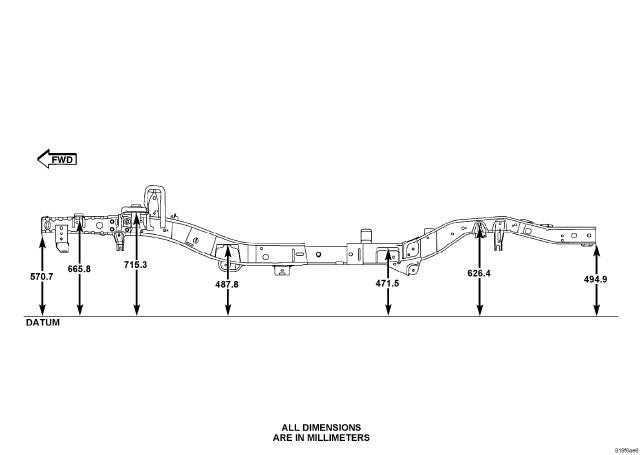

Fig 2: Side View - Two Door JK Only

Courtesy of CHRYSLER GROUP, LLC

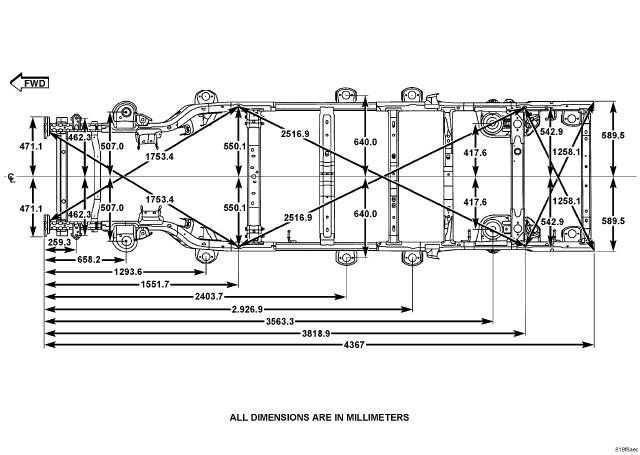

Fig 3: Plan View - Two & Four Door J8

Courtesy of CHRYSLER GROUP, LLC

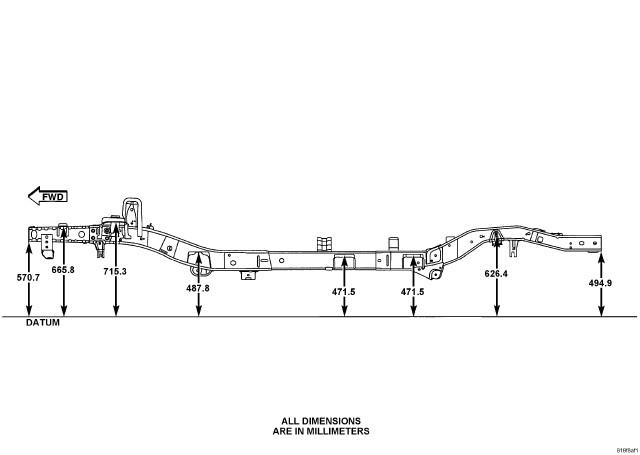

Fig 4: Side View - Four Door

Courtesy of CHRYSLER GROUP, LLC
