Alignment: Specifications

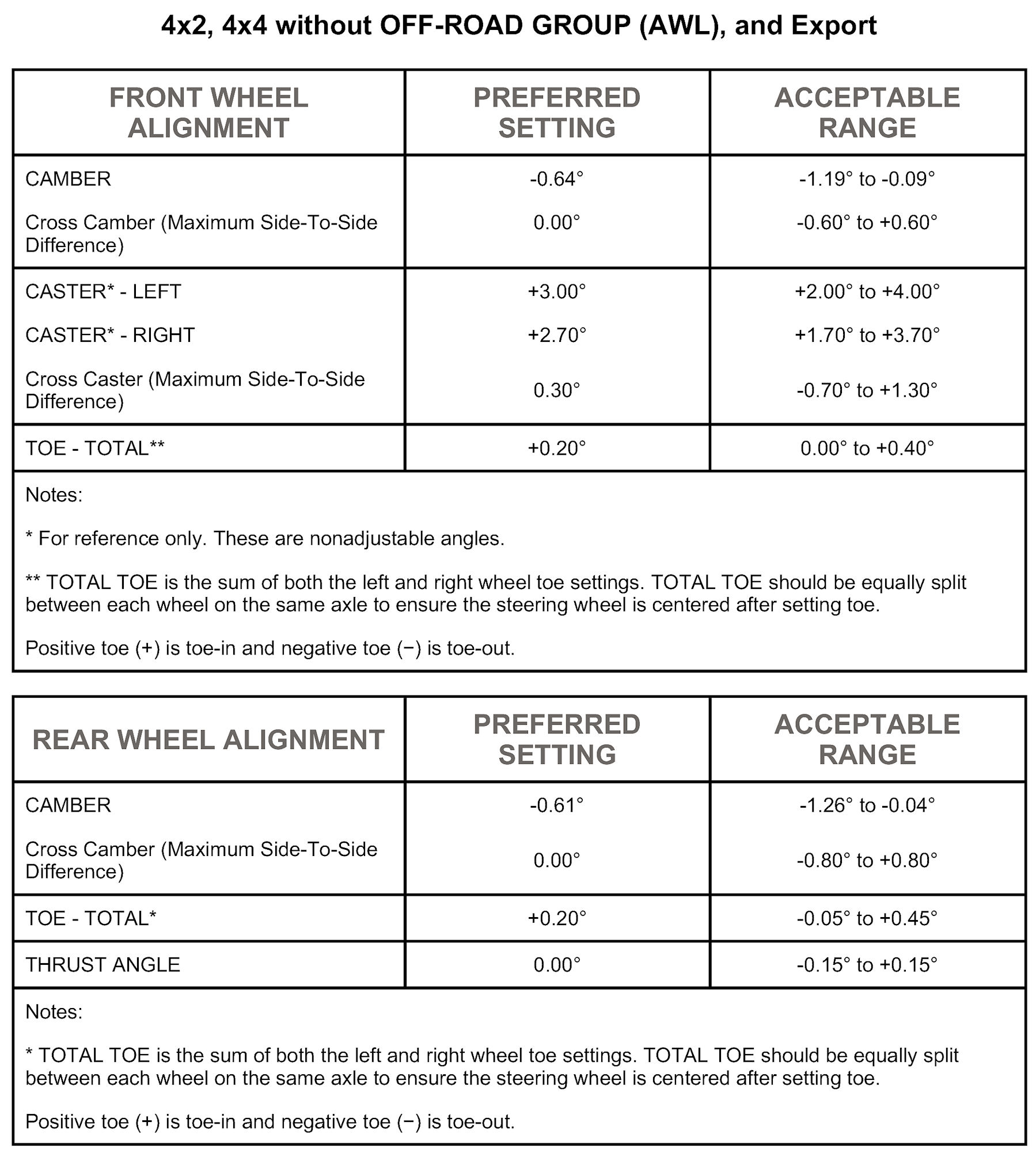

4x2, 4x4 Without OFF-ROAD GROUP (AWL), And Export:

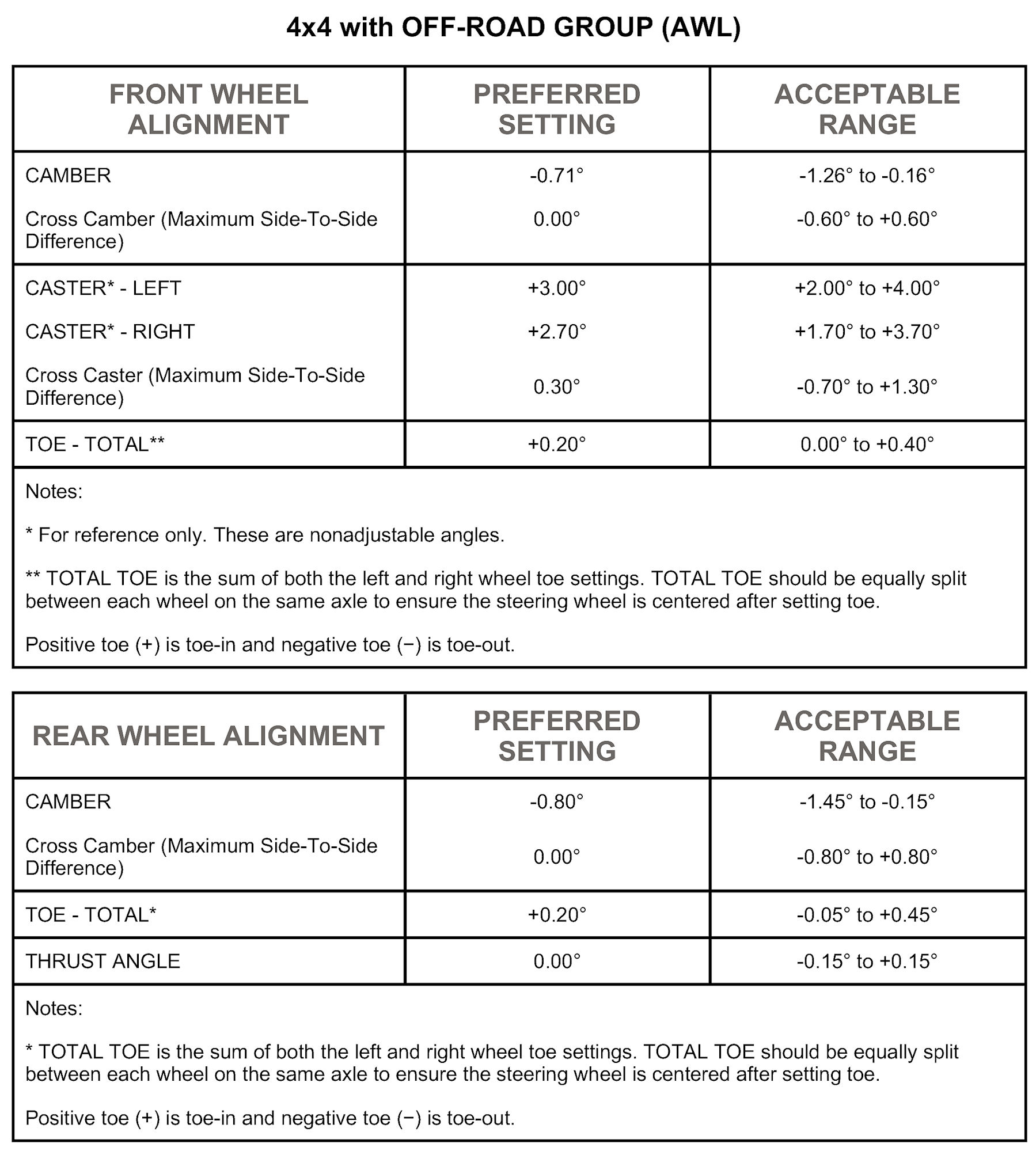

4x4 With OFF-ROAD GROUP (AWL):
