Heater, Engine Block: Installation: Installation

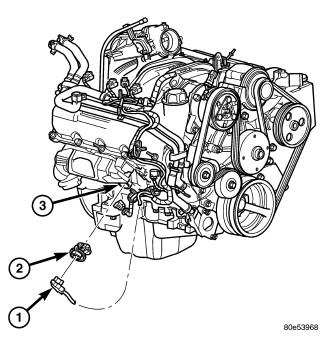

Fig 1: Engine Block Heater 3.7L

Courtesy of CHRYSLER GROUP, LLC

1 - POWER CORD

2 - BLOCK HEATER

3 - CORE HOLE

Thoroughly clean core hole (3) and heater seat.
Insert heater assembly (2) with element loop positioned upward .
With heater assembly (2) properly seated, tighten center screw securely to assure a positive seal.
CAUTION:
To prevent damage, the power cord must be secured in its retaining clips, and not positioned so it could contact linkages or exhaust manifold.
Connect power cord (1) to heater assembly (2).
Lower vehicle.
Fill cooling system. Refer to STANDARD PROCEDURE .
