Mode Sensor - Installation

INSTALLATION

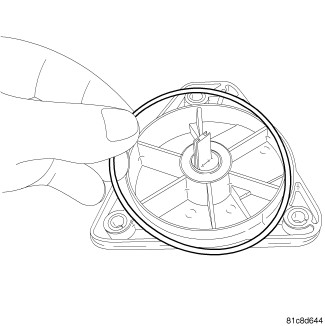

1. Install a NEW o-ring seal onto the encoder.






NOTE: Before installing the encoder onto the transfer case, be certain to align the encoder shaft to the shift shaft and the dowel on the encoder to the hole in the case accordingly.

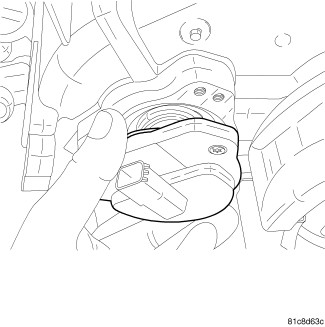

2. Install the encoder onto the rear transfer case housing.
3. Install the encoder screws. Tighten the screws to 5-8 Nm (44-71 in.lbs.).
4. Install the electrical wiring harness connector onto the encoder.
