Park Assist Module - Installation

INSTALLATION

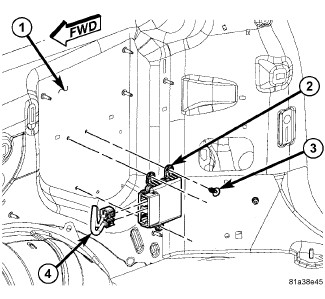

1. Position the park assist module (2) to the right quarter inner panel (1) behind and above the right rear wheel house, forward of the D-pillar.
2. Secure the module to the right quarter inner panel using three plastic push-in fasteners (3).
3. Reconnect the two body wire harness connectors (4) to the module connector receptacles.
4. Reinstall the trim onto the right quarter inner panel.Quarter Trim Panel - Installation.
5. Reconnect the battery negative cable.
