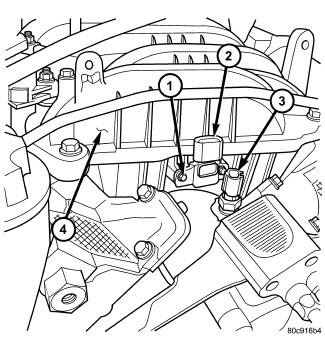

Engine Coolant Temperature Sensor - Installation

3.7L ENGINE










1. Apply thread sealant to sensor threads.
2. Install sensor to engine.
3. Tighten coolant temperature sensor to 11 Nm (8 ft. lbs.) torque.
4. Replace any lost engine coolant.
