Procedures

LOCK OUT






NOTE: The parking brake is self-adjusting, it can not be adjusted.

1. Remove the center floor console Service and Repair.

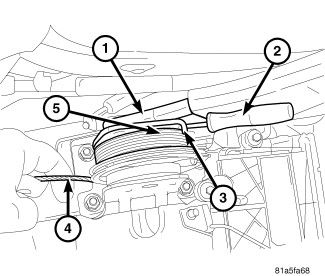

2. With lever in DOWN position, pull up on the core cable (4) rotating the drum (5) until the drum cut-out aligns with hole on lever tab (3), then install a punch (2) in this hole and drum cut-out. Release grasp on core cable.
3. The park brake system is now locked out to perform necessary repairs.
