Brake Fluid Level Switch - Installation

INSTALLATION

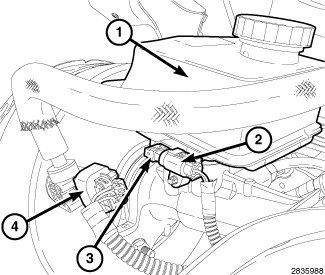

1. Install the sensor (3) with a new O-ring into the reservoir (1) until the locking tabs are engaged.
2. Install the wire connector (2) to the fluid level sensor (3).
