Front Fender - Installation

INSTALLATION





1. Install the side marker lamp assembly.

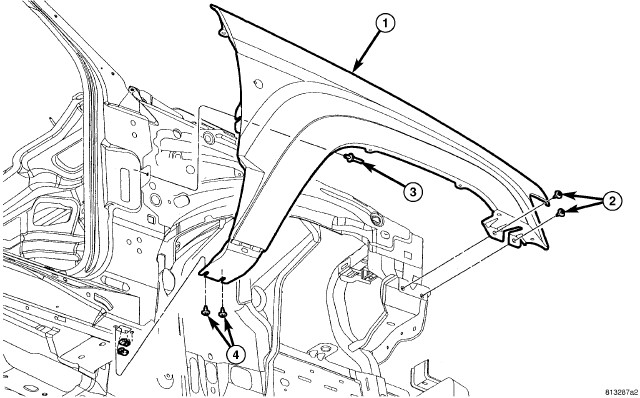

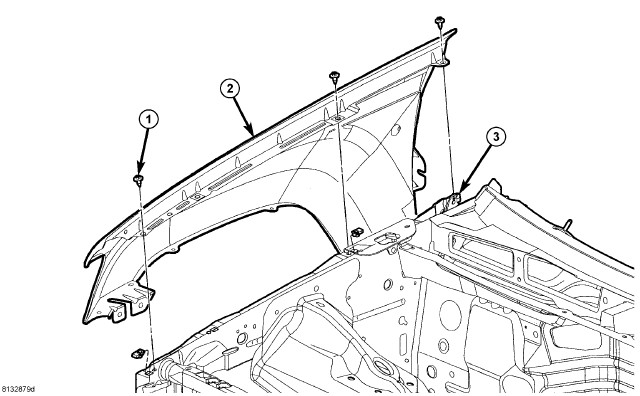

2. Position fender on body.
3. Install all fasteners finger-tight.

NOTE: When installing the fasteners, be certain to position and loosely install the front fascia side retainers at this time.






4. Align fender with adjacent body panels and reference marks.
5. Tighten all fasteners to 8.5 Nm (75 in. lbs.).
6. Install rocker sill cladding as necessary, Body Sill Cladding - Installation.

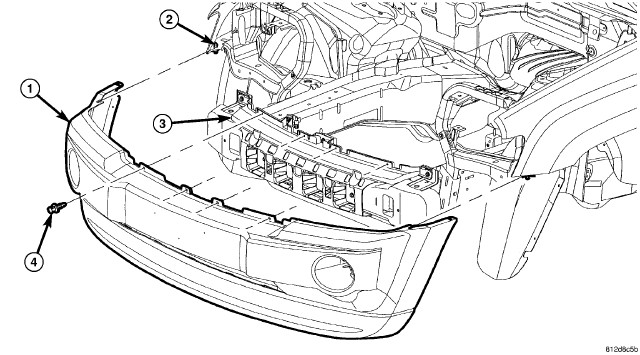

7. Install front fascia assembly (1), Front Bumper Fascia - Installation.





8. Connect side marker lamp electrical connector.

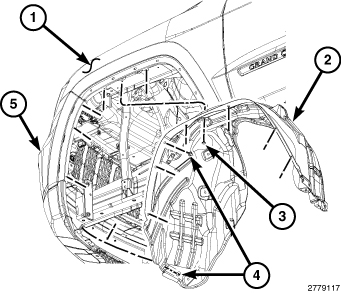

9. Install wheel liner (2), Splash Shield - Installation.
10. Install wheel and tire assembly if removed.
