Exhaust Manifold

EXHAUST MANIFOLD

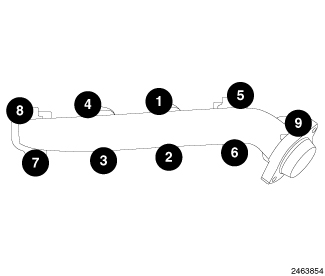

Left

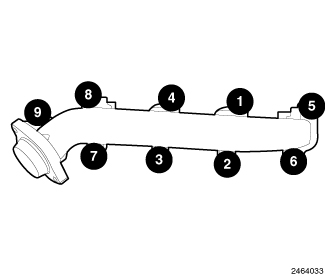

Right





Tighten the exhaust manifold bolts/studs 25 Nm (18 ft. lbs.)
Position the exhaust manifold heat shield, Install the rear heat shield retaining nuts and tighten 8 Nm (71 in. lbs.).
