Module, Compass: Description: Description
WARNING: This page is about a different car, the 2012 Dodge Charger. However, it is still accessible from the selected car via links, so may be relevant.

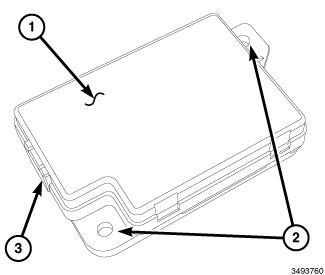

The Remote Compass Module (RCM) (1) is secured through two integral mounting tabs (2) to a mounting bracket that is secured to the upper center of the instrument panel support structure, behind the Integrated Center Stack (ICS) display module. A connector receptacle (3) integral to one side of the molded black plastic RCM housing is connected to the vehicle electrical system through a dedicated take out and connector of the instrument panel wire harness.
The RCM cannot be repaired. If the module is ineffective or damaged, the entire unit must be replaced.
