Damper, Vibration: Installation: Installation

WARNING: This page is about a different car, the 2016 Dodge Charger and 2015 Dodge Charger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Using a commercially available damper installer, install the 16mm threaded rod into the crankshaft.
  2. Tighten the threaded rod until it is seated to the face of the crankshaft.

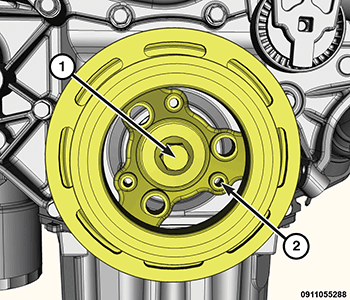

    Fig 1: Crankshaft Damper & Bolt
    GC0170177Courtesy of CHRYSLER GROUP, LLC
  3. Position the damper (2) on the crankshaft.
  4. Install the press washer, bearing, washer, and the press nut onto the threaded rod.
  5. Using Damper Installer and a deep well socket, press the damper onto the crankshaft until seated.
  6. Install a New vibration damper bolt (1).
  7. Position the (special tool #10386, Holder, Vibration Damper), onto the vibration damper pulley.
  8. Tighten the bolt to the proper specification. Refer to TORQUE SPECIFICATIONS  .
  9. Install the cooling fan. Refer to FAN, COOLING, INSTALLATION .
  10. Connect the negative battery cable.
