Switch, Memory: Installation: Installation

WARNING: This page is about a different car, the 2016 Dodge Charger and 2015 Dodge Charger. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

Take the proper precautions to protect the door handle and bezel from cosmetic damage while performing this procedure.

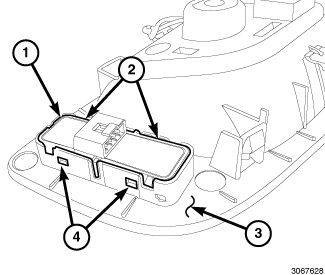

Fig 1: Memory Seat Switch & Retaining Tabs
GC0144635Courtesy of CHRYSLER GROUP, LLC
  1. Install the memory seat switch (1) into the driver door handle bezel (3). Push the switch firmly into the bezel until the retaining tabs (2 and 4) are fully engaged.
  2. Install the driver door handle and bezel. Refer to PANEL, DOOR TRIM, INSTALLATION .
  3. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector to the negative battery cable.
  4. Using a scan tool, perform the Power Seat System Verification test. Refer to STANDARD PROCEDURE .
  5. Verify proper memory seat system operation.
