Cover(S), Engine Timing: Installation: Installation

WARNING: This page is about a different car, the 2015 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Coolant Outlet Housing, Water Pump & Bolts

Courtesy of CHRYSLER GROUP, LLC

If removed, install the coolant outlet housing (1) to the timing cover with a new gasket using only the four bolts (2) shown in illustration tightened to the proper specification. Refer to TORQUE SPECIFICATIONS .
If removed, install the water pump (3) to the timing cover using only the four bolts (4) shown in illustration tightened to the proper specification. Refer to TORQUE SPECIFICATIONS .

Fig 2: Coolant Outlet Housing Gasket & Water Pump Gasket
Courtesy of CHRYSLER GROUP, LLC
Install the coolant outlet housing gasket (1) and the water pump gasket (2).

Fig 3: Sealant At Cylinder Head Bosses, Right & Left Flanges, Cylinder Head-To-Engine Block T-Joints & Cover To Right Cam Chain Tensioner Gap
Courtesy of CHRYSLER GROUP, LLC
Clean the engine timing cover, cylinder head and block mating surfaces with isopropyl alcohol in preparation for sealant application. Refer to ENGINE GASKET SURFACE PREPARATION .
CAUTION:
Engine assembly requires the use of a unique sealant that is compatible with engine oil. Using a sealant other than Mopar® Threebond Engine RTV Sealant may result in engine fluid leakage.

CAUTION:
Following the application of Mopar® Threebond Engine RTV Sealant to the gasket surfaces, the components must be assembled within 20 minutes and the attaching fasteners must be tightened to specification within 45 minutes. Prolonged exposure to the air prior to assembly may result in engine fluid leakage.
Apply a 2 to 3 mm wide bead of Mopar® Threebond Engine RTV Sealant to the front cover as shown in illustration in the following locations:
- Three cylinder head bosses (1)
- Right and left flanges (2)
- Four cylinder head to engine block T-joints (3)
- Cover to right cam chain tensioner gap (4).
Fig 4: Timing Cover Bolts
Courtesy of CHRYSLER GROUP, LLC
Align the locator pins (4) on the engine block to the engine timing cover and install the cover.
Install and tighten the timing cover attaching bolts:
- Tighten twenty-two M6 bolts (3) to the proper specification. Refer to TORQUE SPECIFICATIONS .
- Tighten two M8 bolts (2) to the proper specification. Refer to TORQUE SPECIFICATIONS .
- Three M10 bolts (1) to the proper specification. Refer to TORQUE SPECIFICATIONS .
Install the upper and lower oil pans. Refer to PAN, OIL, INSTALLATION .
Install the right and left cylinder head covers. Refer to COVER(S), CYLINDER HEAD, INSTALLATION .
Install the vibration damper. Refer to DAMPER, VIBRATION, INSTALLATION .
Install the idler pulley. Refer to PULLEY, IDLER, INSTALLATION .
Install drive belt tensioner. Refer to TENSIONER, BELT, INSTALLATION .

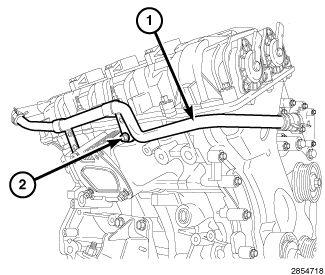

Fig 5: Heater Core Supply Tube Support Bracket & Retaining Bolt
Courtesy of CHRYSLER GROUP, LLC
Install the heater core supply tube (1) with one bolt (2) tightened to the proper specification. Refer to TORQUE SPECIFICATIONS .

Fig 6: Heater Core Supply Hose & Coolant Outlet Housing
Courtesy of CHRYSLER GROUP, LLC
Install the heater core supply hose (1) to the coolant outlet housing (2).

Fig 7: Radiator Hose & Heater Hose
Courtesy of CHRYSLER GROUP, LLC
Install the lower radiator hose (2) to the water pump housing.
Install the heater core return hose (1) to the water pump housing.
Install the thermostat. Refer to THERMOSTAT, REMOVAL .
If removed, install the oil filter and fill the engine crankcase with the proper oil to the correct level. Refer to OIL, STANDARD PROCEDURE .
Connect the negative battery cable.
Fill the cooling system. Refer to STANDARD PROCEDURE .
Run the engine until it reaches normal operating temperature. Check cooling system for correct fluid level. Refer to STANDARD PROCEDURE .
