Rear Toe

NOTE:

Perform the following at each rear wheel as necessary.

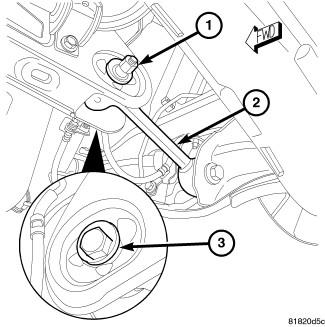

Fig 1: Rear Toe Adjustment Cam Bolt
GC0083863Courtesy of CHRYSLER GROUP, LLC
  1. While holding the cam bolt head (3) stationary, loosen the toe link mounting cam bolt nut (1).
  2. Rotate the cam bolt head (3) left or right until the rear wheel toe for that rear wheel is set to the preferred specification. Refer to WHEEL ALIGNMENT, SPECIFICATIONS .
  3. While holding the cam bolt head (3) stationary, tighten the toe link mounting cam bolt nut (1) to 35 N.m (26 ft. lbs.).
