Plate, Skid, Front: Installation: Installation

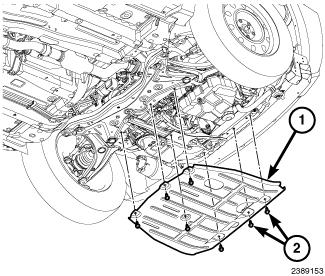

Fig 1: Front Skid Plate & Bolts
GC0098862Courtesy of CHRYSLER GROUP, LLC
  1. Position the skid plate (1) onto the vehicle and line up the holes.
  2. Install the bolts (2) and tighten to 30 N.m (22 ft. lbs.).
