Sensor, Active Damping: Installation: Front
WARNING: This page is about a different car, the 2012 Dodge Charger. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of CHRYSLER GROUP, LLC
NOTE:

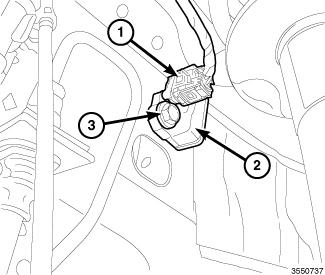

Right side shown in illustration, left side similar.
- Position the sensor (2), install the sensor retaining bolt (3) and tighten to 9 N.m (80 in. lbs.).
- Connect the wiring harness connector (1) and seat the terminal locking tab.
