Gearshift Boot - Installation






INSTALLATION

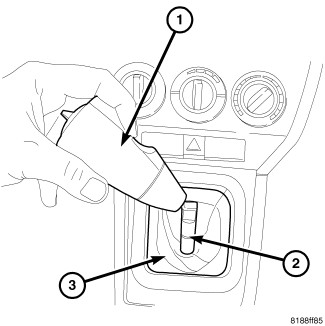

1. Position gearshift boot/bezel (3) over the gearshift mechanism (2) and apply hand pressure to engage and snap the boot into place.
2. Position gearshift knob (1) over the gearshift mechanism.
3. Apply firm pressure until the knob snaps into place.
