Air Outlet - Installation

INSTALLATION

NOTE: Driver side air outlet shown. Other outlets similar.

NOTE: If the foam seal on the air outlet is deformed or damaged, it must be replaced.

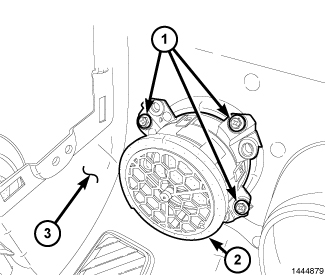

1. Position the air outlet (2) onto the bezel or cover (3).
2. Install the three screws (1) that secure the air outlet. Tighten the screws to 2 Nm (17 in. lbs.).
3. Depending on the outlet being serviced, install the upper instrument panel cover Instrument Panel Cover - Installation or the instrument panel center bezel Instrument Panel Center Bezel - Installation.
